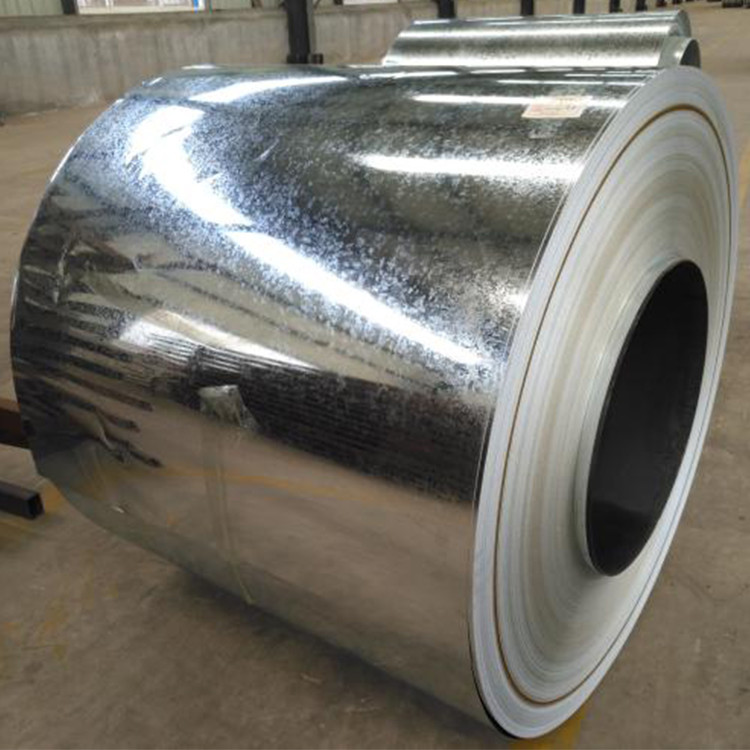

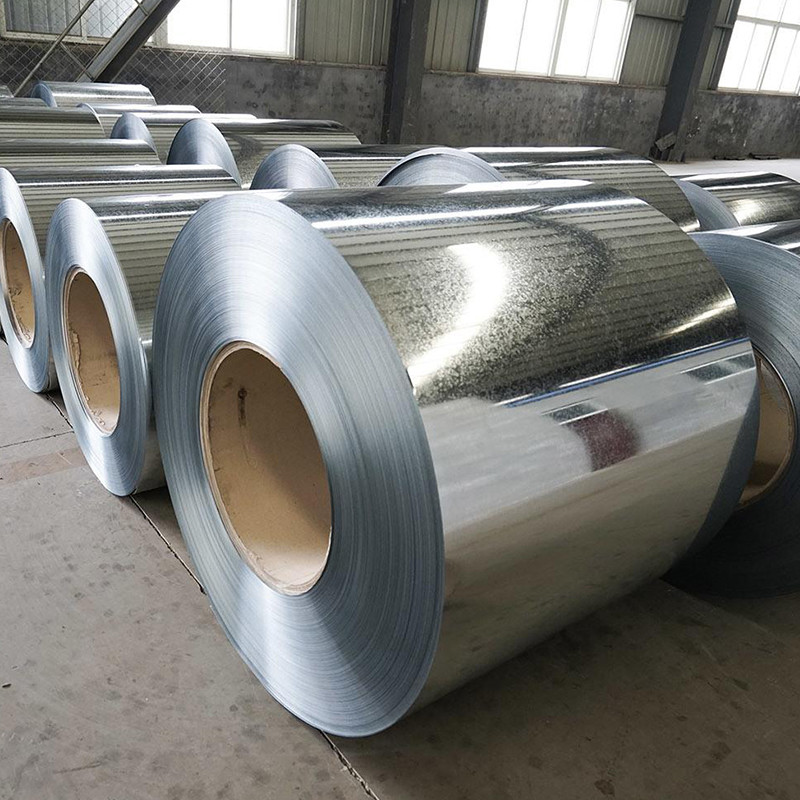

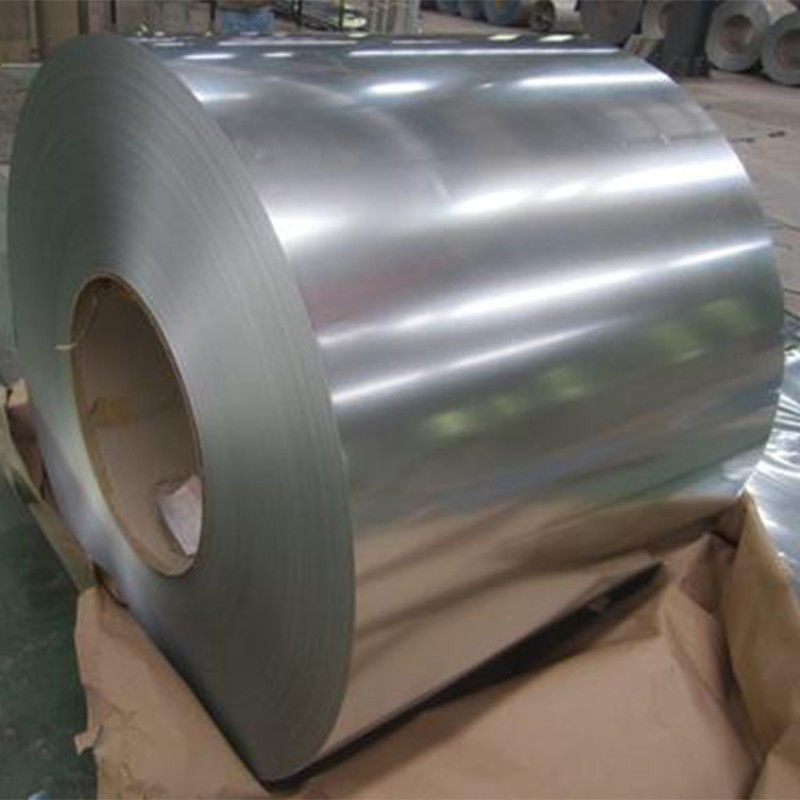

Gi Galvanised Steel Plate 1mm 1.5mm Sheet Coil 580~1250mm Width
| Place of Origin | Jiangsu,China |
|---|---|
| Brand Name | JIANGSU ZHIJIA STEEL |
| Certification | ISO 9001 ,CE |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Delivery Time | 7~10 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Galvanized Steel Coil | Standard | ASTM，AISI，JIS，GB， DIN，EN |
|---|---|---|---|
| Type | Hot-dip Galvanized | Width | 580~1250mm |
| High Light | galvanised steel plate 1.5mm,galv sheet and coil,galvanized coil sheet |
||
Product Description
G550GD Z120/Z180/Z275 Hot-Dip Galvanized Steel Coil
galvanized steel
Galvanized Steel Sheet is defined as a carbon steel sheet coated with zinc on both sides. Galvanized Steel Coil Importer produce galvanized steel with two main processes: continuous hot dip galvanizing and electro-galvanizing.
A zinc coating is one of the most effective and economical methods of protecting bare steel from a corroding environment. The zinc not only serves as a barrier between the steel and the environment, but it will also sacrifice itself to protect the underlying steel sheet. Sacrificial or galvanic protection occurs when two dissimilar metals are in contact and coupled with water and oxygen. Zinc corrodes preferentially to the iron in steel. This protection prevents corrosion of the steel at areas not covered with zinc. Thus, the spread of corrosion from cut edges, drill holes, etc. is minimized.
COATING
| Type | Coating mass(g/m2) | Plate thickness(mm) | Width(mm) | |
| Hot Dip Galvanized steel | Hot-dip galvanealed steel sheet and coil/strips | 30~120 | 0.5~4.5 | 580~1250 |
| Hot-dip galvanized steel sheet and coil/strips | 60~600 | 0.23~6.0 | 580~1250 | |
| Hot-dip zinc-aluminum-magnesium-silicon alloy coated steel sheet and coil/strips | 60~275 | 0.27~9.0 | 580~1250 | |
| Hot-dip aluminum coated steel sheet and coil/strips | 40~160 | 0.3~2.5 | 580~1250 | |
| Electrogalvanized steel | Electrolytic zinc coated steel sheet and coil/strip | 10~40 | 0.4~2.3 | 580~1250 |
| Electrolytic zinc-nickkel coated steel sheet and coil/strip | 10~40 | 0.4~2.3 | 580~1250 |
GRADE
|
DX51D+Z DX52D+Z DX53D+Z S280GD+Z S350GD+Z S550GD+Z |
DX51D+AZ DX52D+AZ DX53D+AZ S280GD+AZ S350GD+AZ S550GD+AZ |
DX51D+AZM DX52D+AZM DX53D+AZM S280GD+AZM S350GD+AZM S550GD+AZM |
SGHC SGH400 SGCC SGCH SGCD SGC400 |
